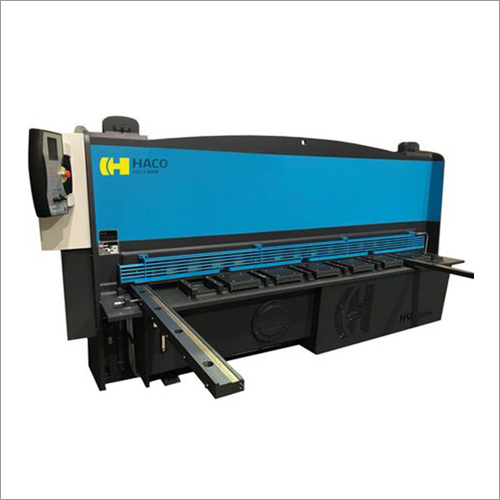

HSL(X) Hydraulic Guillotine Shearing Machine

Product Details:

Type Hydraulic Shearing Machine
Material Metal
Automatic Grade Automatic
Voltage 440 Volt (v)
Share Your Product:

2200000 INR/Unit

Get a Price/Quote

Request To Call Back Send Inquiry

HSL(X) Hydraulic Guillotine Shearing Machine Price And Quantity

Price 2200000 INR/Unit
Minimum Order Quantity 1 Unit

HSL(X) Hydraulic Guillotine Shearing Machine Product Specifications

Automatic Grade Automatic
Material Metal
Type Hydraulic Shearing Machine
Voltage 440 Volt (v)

HSL(X) Hydraulic Guillotine Shearing Machine Trade Information

Payment Terms Cash Advance (CA)
Delivery Time 30 Days
Main Domestic Market All India

Product Description

The HSL(X) Hydraulic Guillotine Shearing Machine is just like our TS (X) Hydraulic Guillotine Shearing Machine. The cutting action of this machine is like scissors cutting action. The position of hydraulic cylinders on these machines are positioned directly above the ram and push the ram in a downwards direction. The offered Guillotine shears are better and share multiple advantages above swing beam type shears. These machines are made to cut several material types and thicknesses and have no twist in the frame like swing beam types.

New Operator Control

You can now control the beam rake angle and the blade gaps setting by the new SC90 operator control.
We adjust the rake angle on the HSLX guillotines by pumping more oil into or releasing oil out of the right cylinder.
We have 2 hydraulic cylinders which push the ram of the blade gap forward or backward to set the blade gap. The ram is guided between 4 spring-loaded bearings.

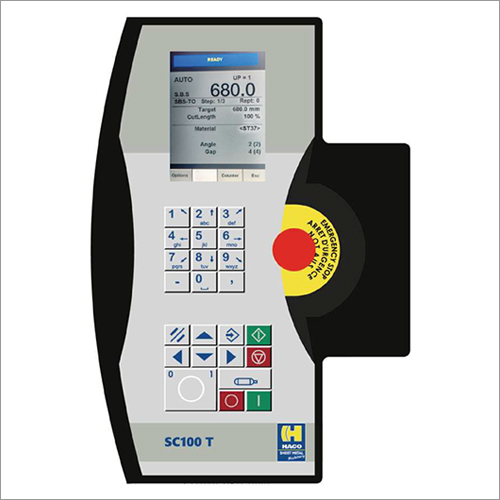

SC100T CONTROL (Optional, = X Model)

HSL EXECUTED WITH THE OPTIONAL SC100T CONTROL IS CALLED HSLX.

Basic features of the SC100T control :
LCD display (5.7") and Touch Screen
Memory capacity : - max 500 programs with each max. 255 steps. - material list of max. 32 materials.
Electro-hydraulic blade gap setting by means of 2 cylinders.
Stroke control adjustment (cutting length).
Automatic programmable retraction of the back gauge.
Possibility of jog mode on back gauge.
Backlash compensation, delayed sheet release.
Mode selection Inch-Metric.
Preset counter with 0-stop.
USB Interface
